MALIBU WAKESETTER 25 LSV | BIG ON LUXURY, HUGE ON PERFORMANCE
Introduced in 2016 - And Built To Deliver The Ultimate Wake. Every Pro Athlete Who's Shredded Behind This 25-Footer Says It Kicks Up What Are Unmistakably The Biggest, Cleanest Wakes And Waves They've Ever Experienced.
There's a reason the 25 LSV holds the Malibu record for first year sales. Bigger is better when it means producing huge, clean wakes and waves. Our longest boat offers seating for up to 19 people and has the potential for 2,200 kgs of maximum ballast. Yet, this agile giant handles like a dream on the water. That's Malibu engineering at its best. You'll see a massive wake even before filling the ballast tanks and dropping the Power Wedge II hydrofoil. If you're ready for huge, barreling waves, expansive room and our full array of premium features and innovations, you're ready for the 25 LSV.
Malibu’s Integrated Surf Platform combines an array of our innovations to create the perfect wake and wave suitable whether you are a beginner, a Professional, or anywhere in between. The ISP starts with performance hulls and swim boards tailored to each boat model. From there it builds in several industry-firsts, including the unique and patented Surf Gate that transforms a perfect watersports wake into a surfable and customized wave.
The ISP’s Quad Hard-Tank Ballast system lets you add up to 2,270 kgs of wake-creating ballast (depending on the model) at the tap of your finger on one of the dual touch-screens forming our Command Center.
Also at your command, Malibu’s Power Wedge II, our second-generation patented hydrofoil, adds up to 680 kgs of additional wake-generating water displacement.
For the last word in wake and wave control, the Malibu ISP puts it right in the surfer’s hands with the patented Surf Band wrist remote. Easily transfer with the use of Surf Band, as well as audio and visual signaling.
| Length (excl. Platform) | 25' / 7.62 m |
| Length (incl. Swim Platform) | 27'10" / 8.48 m |
| Beam | 102" / 2.60 m |
| Weight | 5,600 lbs / 2,540 kgs |
| Draft | 32" / 0.81 m |
| Standard Ballast | 1,475 lbs / 670 kgs |
| Maximum Ballast | 4,850 lbs / 2,200 kgs |
| Optional Bow Ballast | 350 lbs / 158 kgs |
| Optional Plug'n'Play | 1,100 lbs / 499 kgs |
| Optional Power Wedge II | 1,500 lbs / 680 kg |
| Hull Type | Wake Plus |
| Fuel Capacity | 291 ltrs |
| Maximum People | 19 |
| Disclaimer |
|
New Helm Seat
New Upholstery
New Windshield Design
New G3.5 Tower Hoop Color Options
New USB Outlets In Cockpit
Larger Phone Holder
Phone Profiles Via Bluetooth
Malibu-Branded Drop-In Igloo Coolers
Propellors
Standard 17 x 17 - 2805
High Altitude/Torque 17 x 14 - 2755
Speed 17 x 20 - 1415 (w/575)
Engine Accessories
Stainless - Turned Down
Flush Kit - Transom Install (Added when Saltwater Selected)
2-Outlet Heater, V-Drives
3-Outlet Heater, V-Drives
Additional 2 Outlet Heater
Shower - Hot Water
Canvas Covers
CS Bimini Top - Gen II Surf (only w/3.5)
CS Bimini Top & Boot - w/Rope Storage (2 Pockets) (only w/3.5)
CS Pistol Bimini Top & Boot - w/Rope and Surf Storage (Only w/G4)
GL Flip Bimini w/Surf Storage
Z5 Bimini and Cargo Rack
CS Boat Cover - w/Black Zip Cleat and Fuel Fill Pockets
GL Boat Cover - w/Pleated Pockets w/Hang-Tyte
CS Boat Cover - over Folded G4 Tower (only w/G4 n/a w Z5 Bimini)
Shrink Wrap Shipping Cover
Cockpit Options
Wide Angle Rear View Camera
This high-definition rear-view camera is located on the transom, so you can always keep an eye on what's happening behind the boat, for increased safety. Footage is viewable live or recorded on the MaliView Screen.
Deck Trac - Nonskid (Complete Deck Kit)
HELM SEAT HEATER
We know that your desire to pursue your sport will sometimes find you on the water on less warm moments. So to keep those helming your Malibu happy, your can select the Helm Seat Heater, and with the flick of a switch this integrated heating element will keep your driver nice and toasty.
Cockpit Flooring - DeckADence
Cockpit Flooring - Snap-out Carpet Insert
Cockpit Flooring - Soft-Grip Flooring
SOFT GRIP FLOORING
Our Soft Grip Flooring adds comfort, grip, durability and an ultra-premium look and feel to your Malibu's interior and swimdeck.
Mirror & Windscreen Mount - PTM 14 in - Black Composite
Mirror & Windscreen Mount - PTM Panoramic 140 degree, Billet
Power Lift Helm Seat
Seat Pedestal Storage - Driver Drybox (N/a Power Lift Helm Seat)
Speed Control - Zero Off GPS
Speed control - Zero Off w/Navigation - Chart Plotting
Sport Dash w/Rotary VDC 4-Way Joystick

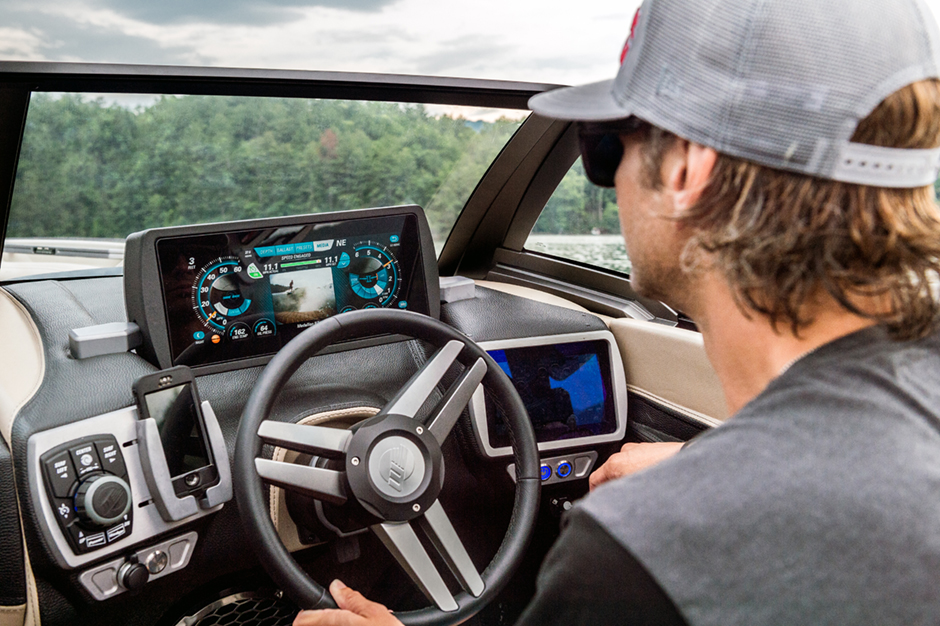

SPORT DASH WITH ROTARY CONTROL & PHONE HOLDER
The analog control dial for the Surf Gate, Power Wedge II, speed and stereo is a great convenience, allowing the driver to control all of this technology with one hand-and without taking their eyes off the water.
Steering Wheel Controls - Malibu Command Wheel
Malibu Steering Wheel Controls
The award wining Malibu Steering Wheel Control cleverly remains horizontal while the steering wheel itself rotates around the controls. This provides you with another way of accessing Malibu's array of Wake & Wave Shaping technology, which is Malibu's Integrated Surf Platform (ISP), along with controls for the sound system.
REVERSIBLE WAKEVIEW REAR BENCH
Available on the all-new 25 LSV, 22, MXZ & 24 MXZ (std with the M235), the reversible WakeView rear bench converts from forward-facing to rider-facing in one simple move, with minimal effort. As this converts the rear bench seat it does not occupy any additional precious space in the cockpit, genius!
Graphics
Wakesetter Hull Graphics
Hardware
Battery - 500 CCA (Taylor Deep Cycle)
Battery - 800 CCA (Taylor Deep Cycle)
Dual Batteries - 500 CCA & 800 CCA
Battery Charger (European)
Battery Set Up - Option 2 (required for Sound Package. Includes a battery isolator switch with a second box and cables.)
Battery Set Up - Option 3 (VSR (Voltage Sensitive Relay) system, dual battery boxes and single disconnect switch. Upgraded starter kit to allow the addition of multiple batteries.)
Pull Up Cleats - Three Pair
Pull Up Cleats - Two Pair
Phender Pro - Quick Release Pin & Receiver
Fire Suppression System (CE Certified)
Ladder - Undermount Swimstep
Pylon - V-Drive - Brushed Gray Anodized
Grounded Bonded Sacrificial Anodes (Added when Saltwater Selected)
Hydraulic Steering (automatically added when SWS selected)
Transom Camera Mounts for Action Cam
Lighting
The Pop-Up Bow Light is concealed and stored when you don't need it, then by simply flipping-it through 180 degrees it's there when you do.
Docking Lights (Pair, 6 LEDs each)
DOCKING LIGHTS - Docking lights feature 18 bright-white LED's that emit an X-shaped beam. Expands the visible area and consumes much less power than traditional halogen
Transom Lights - Underwater - Blue
Transom Lights - Underwater - White
Stereo Components
Stereo Sound System with 8 inch Speakers
Subwoofer - 12 inch Subwoofer (w/amp)
Stereo Transom Remote
Allows you to control the music from the back of your Malibu. Located on the transom, so whether you are sitting on the swim platform or chilling on the sunpad, controlling your sounds is within easy reach.
Tower
Side Pull Surfing Tow Point - Port & Stbd
Tower Speakers Swivel Mount - 1 set
Tower Speakers Swivel Mount - 2 sets
NEW G3.5 Tower
New for 2017, the G3.5 tower offers outstanding value without sacrificing renowned Malibu quality. It's got all you need for fun and safety on the water, including a new easy latching solution, powerful lights, stainless-steel hoops and anodized and powder-coated components. The G3.5 introduces a new latch design, new LED tower and anchor lights and optional side pull points for surfing.
On both towers, you'll find Malibu's renowned attention to detail in every part. Our aerospace-grade anodised aluminium swivel board racks are corrosion-resistant and ratchet down with the slightest tug on a single lever, securing any board. Wakeboarding Magazine called these "the best board racks ever."
To give the rider a dynamite soundtrack, option the G3.5 with the swivel-mounted, high fidelity G-Force Wet Sounds speakers.
Illusion G3.5 - Tower - Charcoal, Dark Blue, Indy Red, White)
NEW G3.5 Tower
New for 2017, the G3.5 tower offers outstanding value without sacrificing renowned Malibu quality. It's got all you need for fun and safety on the water, including a new easy latching solution, powerful lights, stainless-steel hoops and anodized and powder-coated components. The G3.5 introduces a new latch design, new LED tower and anchor lights and optional side pull points for surfing.
On both towers, you'll find Malibu's renowned attention to detail in every part. Our aerospace-grade anodised aluminium swivel board racks are corrosion-resistant and ratchet down with the slightest tug on a single lever, securing any board. Wakeboarding Magazine called these "the best board racks ever."
To give the rider a dynamite soundtrack, option the G3.5 with the swivel-mounted, high fidelity G-Force Wet Sounds speakers.
Illusion G4 - Tower - Black
Illusion G4 - Tower - Carcoal, Dark Blue, Indy Red, White)
Delete Std Tower
Tower Amp - 500w (required w/2nd set of speakers)
Tower Hoop Gunmetal Stainless (Only w/3.5)
Tower Hoop and Arch Color Selection (Only w/3.5)
Tower Lights - (4) (Only w/3.5)
Tower Mirror - PTM Panoramic 140 Degree - Black
Tower Mirror - PTM Panoramic 140 Degree - Charcoal, Dark Blue, Indy Red, White)
Rack - Slide Off Spinner Combo (PL)
Rack - Waterski Rack - Slide Off (PL)
Rack - PTM Clamping Spinner Slide Off (PL)
Name Plate (PU)
Rack - Slide Off Fixed Combo (PU)
Rack - Slide Off Spinner Combo (PU)
Rack - Waterski Rack - Slide Off (PU)
Rack - PTM Clamping Spinner Slide Off (PU)
Rack - Slide Off Spinner Combo (SL)
Rack - Waterski Rack - Slide Off (SL)
Rack - PTM Clamping Spinner Slide Off (SL)
Name Plate (SU)
Rack - Slide Off Fixed Combo (SU)
Rack - Slide Off Spinner Combo (SU)
Rack - Waterski Rack - Slide Off (SU)
Rack - PTM Clamping Spinner Slide Off (SU)
Speakers - Wet Sounds Icon 8 (1 set) - Black
Speakers - Wet Sounds Icon 8 (1 set) - White
Speakers - Wet Sounds Rev 8 w/Horn (1 set) - Black
Speakers - Wet Sounds Rev 8 w/Horn (1 set) - White
Speakers - Wet Sounds Icon 8 (2nd set) - Black (Requires Tower Amp)
Speakers - Wet Sounds Icon 8 (2nd set) - White (Requires Tower Amp)
Speakers - Wet Sounds Rev 8 w/Horn (2nd set) - Black
Speakers - Wet Sounds Rev 8 w/Horn (2nd set) - White
Wake Technology
Ballast HI FLO - Midship Malibu Launch System
Ballast HI FLO - Rear Malibu Launch System
Ballast HI FLO - Rear PNP Plumbing
Ballast HI FLO - Rear PNP Plumbing w/Auto Vent
Ballast HI FLO - Bow Malibu Launch System
TRUE WAKE AND WAVE CREATION | Deploying the hydraulically actuated Power Wedge II is like adding up to 1,500 lbs (680 kgs) of additinal wake-creating water displacement. It happens at the tap of the driver's finger on the Command Center, or the surfer wearing the optional Malibu Surf Band wrist remote can adjust it right from the water.
Compared to our original Power Wedge, the Power Wedge II creates a more symmetrical wake that's also taller, longer and cleaner. The hydrofoil's upward angle increases lift to get the boat planing very quickly, which also helps reduce fuel consumption. Malibu's Power Wedge II is the only wake shaping device in the industry that gives you full versatility and infinite wake-and-wave-making abilities.
Surf Gate w/Malibu Surfband (Must also order P/Wedge)
Misc Options
Life Without Limits Album
CE Package - International only
Wash Down Kit (n/a w/PNP)
Trailer
Tandem Axle Trailer
Triaxle Trailer
Two-Tone - Please Select Accent Color
Two-Tone - Fender Only - Please Select Accent Color
Actuator
Bow Step
Elite Shield Coating - Fender only
Elite Shield Coating - Trailer and Fender
Elite Shield Coating - Trailer and Fender
Painted Fenders
Stainless Fenders
Fender Tread Plates
Frame Color - Please Choose Trailer Frame Color
Galvanised - Axles only - Twin Axel
Galvanised - Axles only - Triple
Galvanised - Frame/Axle/Fender
Galvanised - Frame and Axle
Ground Lighting - Malibu Sun Shadow
Brakes - Electric Hydraulic
Lighting - Runway
Lighting Bezel Color - Please Choose Color
Spare Wheel - 14 in Alloy w/Side Carrier
Spare Wheel - 14 in Alloy w/Under Hull Carrier
Spare Wheel - 15 in Alloy w/Side Carrier
Spare Wheel - 15 in Alloy w/Under Hull Carrier
Spare Wheel - 18 in Chrome Plated Wheel Assy w/Side Carrier
Spare Wheel - 18 in Chrome Plated Wheel Assy w/Under Hull Carrier
Spare Wheel - 18 in KMC Rockstar 2 Wheel Assy w/Side Carrier
Spare Wheel - 18 in KMC Rockstar 2 Wheel Assy w/Under Hull Carrier
Spare Wheel - 18 in Machined Black Wheel Assy w/Side Carrier
Spare Wheel - 18 in Machined Black Wheel Assy w/Under Hull Carrier
Spare Wheel
Spare Wheel - Side Carrier - Mount Only
Spare Wheel - Under Hull Carrier - Mount Only
Trailer Wheels - 14 in Alloy
Trailer Wheels - 18 in Chrome Plated Alloy - Twin Axel
Trailer Wheels - 18 in ChromePlated Alloy - Triple Axel
Trailer Wheels - 18 in KMC Rockstar 2 - Twin Axel
Trailer Wheels - 18 in KMC Rockstar 2 - Triple Axel
Trailer Wheels - 18 in Machined Black Alloy - Twin Axel
Trailer Wheels - 18 in MachinedBlack Alloy - Triple Axel
Transom Step w/Slimline LED
Transom Tie Down - SS Ratchet w/ Retractable Straps
Tread Plates - Aluminum
Tread Plates - Soft Grip - Sterling
Tread Plates - Soft Grip - Suede
Turn Signals
Turn Signals (Amber)
Hidden Wheel Chock
Confidence and the power to make the hair on your neck stand straight up every time you turn the key. Discover the massive gains in throttle response, horsepower and towing power made possible by the Monsoon 409 SS features and benefits listed below.
- Coil-near-plug ignition system with 58X crankshaft position encoder, 4X cam sensor, and dual flat response knock sensors for precise control of ignition timing under all operating conditions
- Iridium tip long-life spark plugs with improved “self cleaning” properties which decrease the potential for plug fouling
- Variable valve timing using a hydraulic cam phaser to retard cam timing for low end torque and advance cam timing for high rpm horsepower
- Cast iron deep-skirt cylinder block with six-bolt main bearing caps that limit crankshaft flex and stiffen the engine’s structure
- Serpentine belt
- Top mount starters
- Cast aluminum structural oil pan for additional rigidity
- High-flow aluminum cylinder head design
- Steel camshaft, hydraulic roller lifters, and steel roller rocker arms for reduced friction and excellent durability
- Returnless fuel injection with stainless steel fuel rail
- Inconnel (high temperature) exhaust valves for longterm durability
- Shallow sump oil pan for marine applications
- Floating pin pistons which reduce noise and increase durability
- Heavy-duty timing chain with a new leaf spring dampener to ensure quiet operation and long-term durability
Meet the all-new fuel-sipping Monsoon 450. The inboard marine engine that takes you further on every litre of fuel.
The Monsoon 450 stands apart from all other inboards delivering best in class torque, horsepower and fuel efficiency.
TORQUE ON TAP AND PREMIUM FEATURES
With torque on tap and premium features that enhance the driving and towing experience, the Monsoon 450 is an exceptional choice to deliver the additional torque necessary to quickly plane larger boat models with factory ballast, plus additional loading.
RAPTOR PERFORMANCE MANAGEMENT SYSTEM (RPM) INTELLIGENCE IN MOTION
In efforts to make boating easier for the driver, Indmar has added a suite of monitoring systems to the Monsoon series that enables the high capacity ECM to reduce operator workload, as well as react precisely to driver commands. The Raptor Performance Management System (RPM) comes standard on each Monsoon model and arrives packed with an long list of innovative and intuitive components that constantly monitor conditions and driver input to optimize performance and efficiency of the engine, while adding an extra layer of protection by staying one step ahead. Essentially the RPM turns all of your controls, sensors and systems into one finely tuned machine.
These precise, seamless adjustments bring added confidence and the promise of an immediate thrill - season after season. The Raptor Performance Management System is your trusty wingman, no matter the conditions.
FULL 5-YEAR FACTORY WARRANTY
Indmar's commitment to quality, durability and reliability of the all-new Monsoon Series.
Not only does Indmar’s all-new Monsoon Series offer more power, more torque and better fuel economy, more protection and peace of mind also come standard with a full 5-Year Factory Warranty. The Monsoon Series is an exclusive line-up that defies every challenge, especially the test of time. Welcome to the all-new 5-Year Factory Warranty. Administered directly through Indmar, no third party or insurance involvement.
All the performance benefits of the Monsoon 6.2L 450 High Output engine with the added protection of Indmar’s SaltWater Series, which has been extensively tested and developed to withstand corrosive environments.
Each Indmar SaltWater Series inboard and its associated parts receive an advanced electro-coated dip (E-coat) process that provides complete protection against corrosion. E-coat completely covers both external and internal surfaces, creating a permanent paint to metal bond. And unlike paint and powder coat used by some competitors E-coat will not peel, will not crack and corrosion will not permeate it.
Indmar SaltWater Series cooling systems are completely closed loop systems. That means salt water will never enter the engine system or the exhaust manifolds.
Indmar's cooling systems use only propylene-glycol/water coolant driven through a corrosion resistant engine circulating pump. Coolant tanks are easily accessible for filling and sacrificial anodes are featured for extended life. Indmar confidently backs each SaltWater Series engine with the same three-year limited warranty.
Let it rumble! This engine rates highly on the seat-of-your-pants meter, meaning when you crank the engine, get ready to hold on tight.
The Monsoon 575 CAT is the first production supercharged Gen-IV small block engine for the marine industry.The 6.2L SuperCharged Monsoon 575 V-8′s credentials speak for themselves; however, with 545 lb-ft of torque at 4000 rpm, the 575 leaves the competition behind with it’s perfect blend of high-rev horsepower and low-rev torque.
Features and Benefits
Gen VI SuperCharger with Twin Four-Lobe Rotors
A state-of-the-art supercharger is key to the Monsoon 575's remarkable performance. This Gen IV small-block V-8 is equipped with Eaton’s Twin Vortices Series (TVS) supercharging technology. The Monsoon 572 supercharger displaces 1.9 liters and generates maximum boost pressure of 9.0 pounds per square inch (0.62 bar).
A supercharger is essentially an air pump driven by the engine’s crankshaft. It forces more air into the engine’s combustion chambers than that engine could otherwise draw on its own. The increased volume of oxygen allows the engine to efficiently process more fuel, and thus generate more power.
The TVS takes supercharging technology to new levels of refinement and efficiency. Each of its two rotors has four distinct lobes, or spiral-shaped vanes that inter-mesh precisely with those on the other rotor as they spin at high speed. Efficiency gains with the four-lobe rotors are substantial, compared to comparably sized, previous-generation superchargers: Approximately 20 percent more airflow, with an improvement in thermal efficiency up to 15 percent. Moreover, parasitic power loss-the amount of power the engine uses to operate the supercharger-is reduced 35 percent. That improves both the supercharger’s response time and the engine’s overall efficiency.
An advanced inter-cooling system increases the 6.2L Monsoon 575's performance and extends its supercharger’s benefits. The engine’s charge cooler is integrated in the supercharger case just above the rotors, with a single air-to-liquid cooling “brick” that substantially lower the temperature of air used in the combustion process.
Monsoon 6.2L 575 Supercharged SWS
Jeff Langley
THERE'S NOTHING THAT COMPARES.
With its huge, barreling surf wave, truly massive wake, and all of the awesome 2017 upgrades, the new 25 LSV is the boat of my dreams. You've got to experience it to believe it. Straight out of the box, the wake is unbelievable. Add the Power Wedge II and fill the ballast systems and it's supernatural.
JEFF LANGLEY, Malibu Pro Team
Wakeboarding Magazine

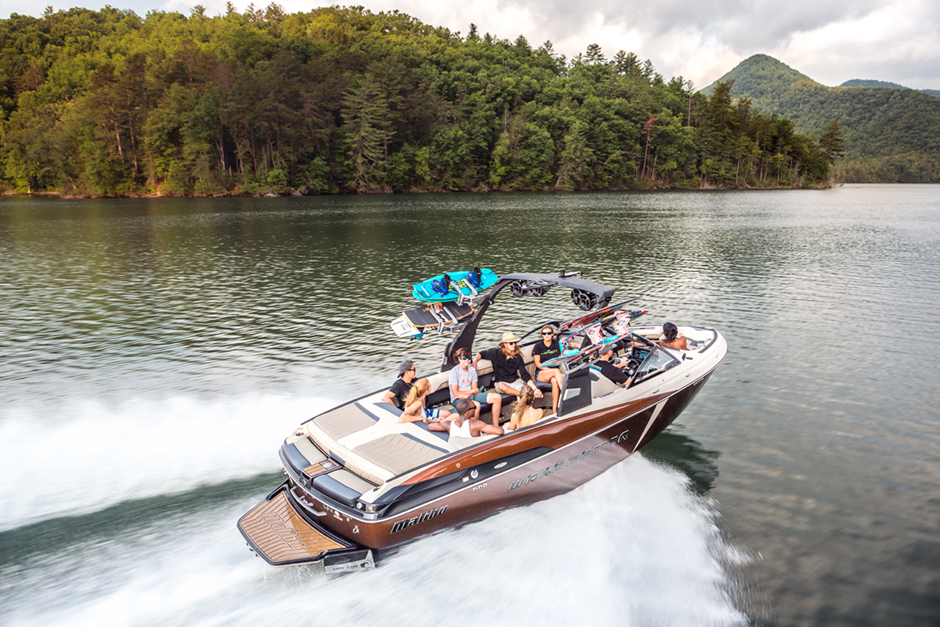

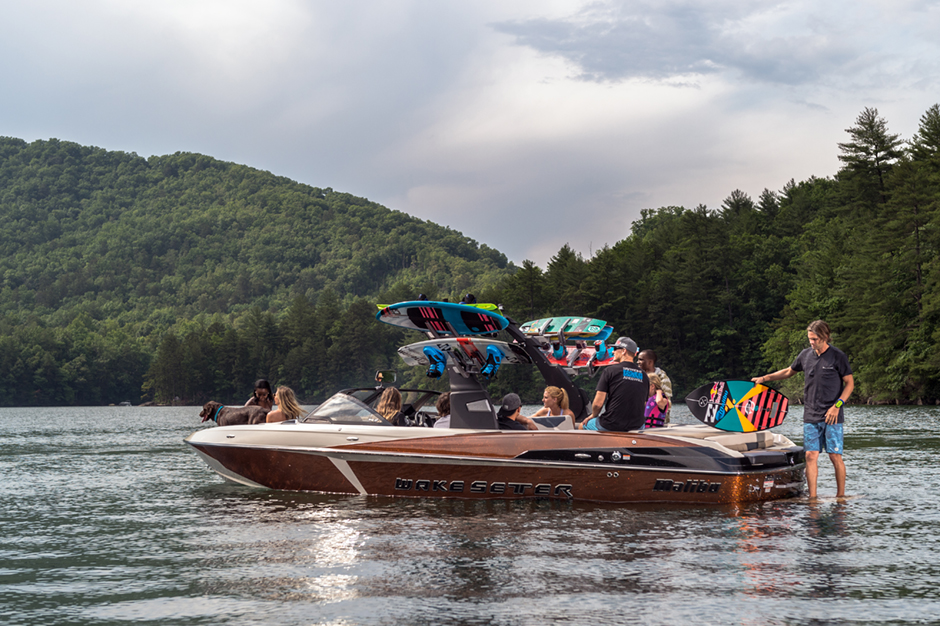

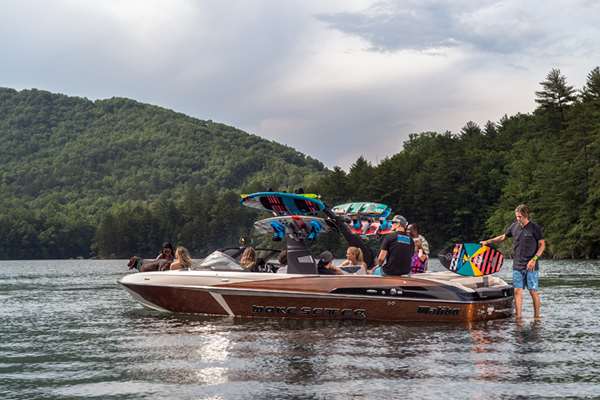

The Malibu Wakesetter 25 LSV is solidly built and has all the features of a modern luxury wakeboat. Seating for 19 people and huge ballast numbers mean the 25 LSV has meaty wakes, which is impossible to deny.
Surf whichever side you choose when you select with the Surf Band, a wearable remote control that handles not only the surf side but also the Power Wedge and the speed within a few miles per hour. The Power Wedge is an important component because it can take the wake from a long and mellow ramp to a steep and tall kick, or anywhere in between. The Power Wedge also boosts the boat on takeoff to make for faster hole shots with far less bow rise than would otherwise be possible with this huge hull.
Control all this wake-shaping tech from your Surf Band or from the helm at the 12-inch center touchscreen and 7-inch auxiliary screen. Or, if you’re feeling analog, take control with the rotary dial and hot keys.

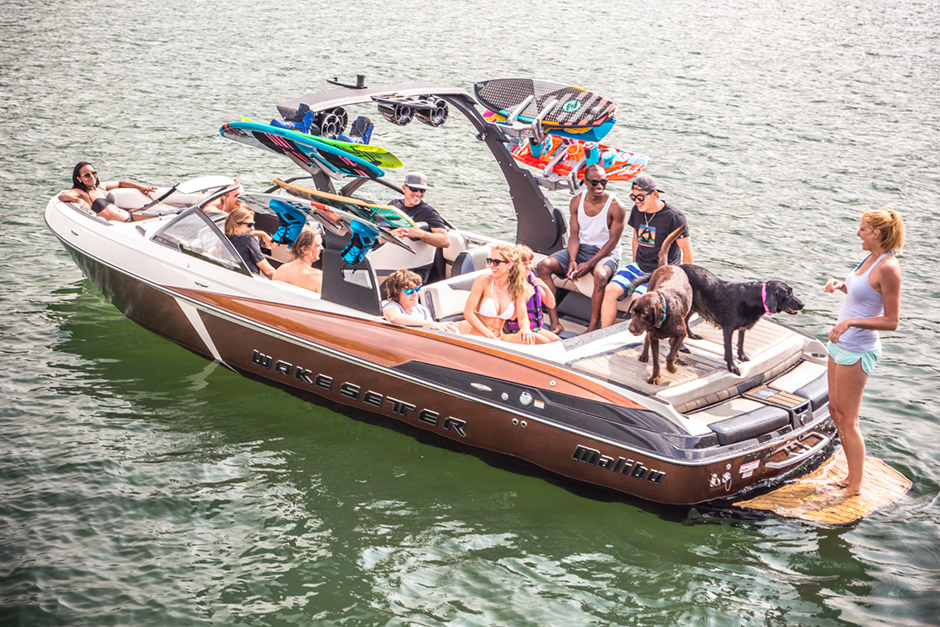

The interior is immaculate with luxury touches that make this boat as fun to be in as it is to be behind. An aft bench-style seat easily converts into a rear-facing seat, flip-down armrests make bow passengers more comfortable, flip-up seat backs give everyone a view of the action, LED lighting sets the mood, and there’s a speaker just about everywhere you look. Above, the tower makes for a solid tow point with state-of-the-art honeycomb interior construction. The tower has Fold Assist so you can lower it by yourself, and simple locks will never leave you frustrated.
Wakeboarding Magazine
WaterSki Mag
The Malibu Wakesetter 25 LSV is solidly built and has all the features of a modern luxury wakeboat. Seating for 19 people and huge ballast numbers mean the 25 LSV has meaty wakes, which is impossible to deny.
Surf whichever side you choose when you select with the Surf Band, a wearable remote control that handles not only the surf side but also the Power Wedge and the speed within a few miles per hour. The Power Wedge is an important component because it can take the wake from a long and mellow ramp to a steep and tall kick, or anywhere in between. The Power Wedge also boosts the boat on takeoff to make for faster hole shots with far less bow rise than would otherwise be possible with this huge hull.
Control all this wake-shaping tech from your Surf Band or from the helm at the 12-inch center touchscreen and 7-inch auxiliary screen. Or, if you’re feeling analog, take control with the rotary dial and hot keys.
The interior is immaculate with luxury touches that make this boat as fun to be in as it is to be behind. An aft bench-style seat easily converts into a rear-facing seat, flip-down armrests make bow passengers more comfortable, flip-up seat backs give everyone a view of the action, LED lighting sets the mood, and there’s a speaker just about everywhere you look. Above, the tower makes for a solid tow point with state-of-the-art honeycomb interior construction. The tower has Fold Assist so you can lower it by yourself, and simple locks will never leave you frustrated.
Water Ski Magazine
Wakeboarding Magazine
The Malibu Wakesetter 25 LSV is solidly built and has all the features of a modern luxury wakeboat. Seating for 19 people and huge ballast numbers mean the 25 LSV has meaty wakes, which is impossible to deny.
Surf whichever side you choose when you select with the Surf Band, a wearable remote control that handles not only the surf side but also the Power Wedge and the speed within a few miles per hour. The Power Wedge is an important component because it can take the wake from a long and mellow ramp to a steep and tall kick, or anywhere in between. The Power Wedge also boosts the boat on takeoff to make for faster hole shots with far less bow rise than would otherwise be possible with this huge hull.
Control all this wake-shaping tech from your Surf Band or from the helm at the 12-inch center touchscreen and 7-inch auxiliary screen. Or, if you’re feeling analog, take control with the rotary dial and hot keys.
The interior is immaculate with luxury touches that make this boat as fun to be in as it is to be behind. An aft bench-style seat easily converts into a rear-facing seat, flip-down armrests make bow passengers more comfortable, flip-up seat backs give everyone a view of the action, LED lighting sets the mood, and there’s a speaker just about everywhere you look. Above, the tower makes for a solid tow point with state-of-the-art honeycomb interior construction. The tower has Fold Assist so you can lower it by yourself, and simple locks will never leave you frustrated.
Wakeboarding Magazine
BOATING
Malibu's Wakesetter 25 LSV provides a large, clean wake.
With Malibu, it’s all about producing the perfect wake, whether you’re surfing, skating or wakeboarding behind one of its boats. The Wakesetter 25 LSV, Malibu’s biggest boat, strives to provide this — with a large, clean wake.

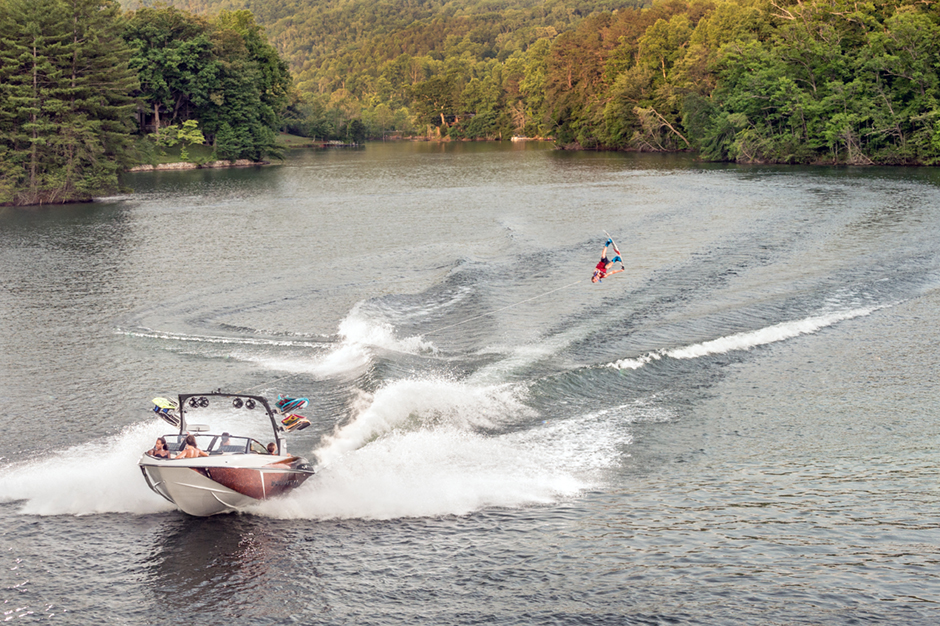

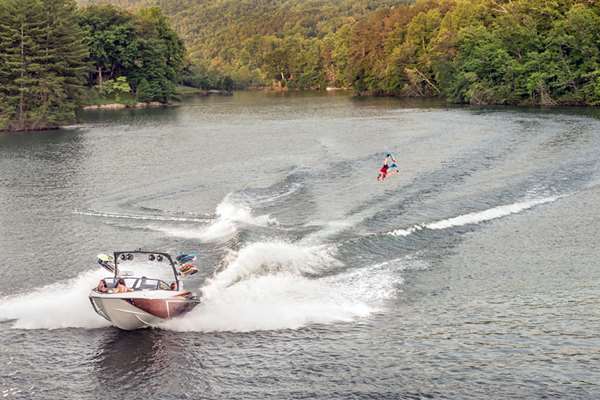

The Wakesetter 25 employs a ballast system that can total up to 1,825 pounds of wake-producing weight thanks to the rigid built-in tanks located below both the bow and stern. For the truly hardcore watersports enthusiasts, more ballast bags can easily be added via proprietary Plug and Play connections. Additional wake-boosting capability comes from Malibu’s exclusive Power Wedge II. This optional transom-mount hydrofoil helps the boat climb onto plane in “lift” mode, then creates a bigger wake when it is set to the “rider” position. Combined with the optional, stylish G4 watersports tower that anchors the tow rope high above the cockpit, the Wakesetter is fully capable of launching riders high off the wake.

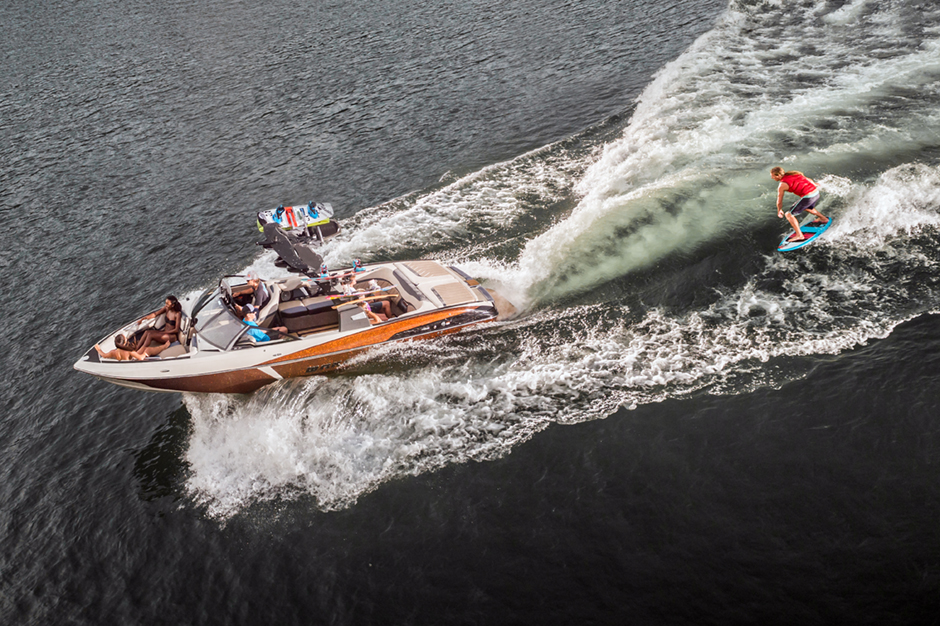

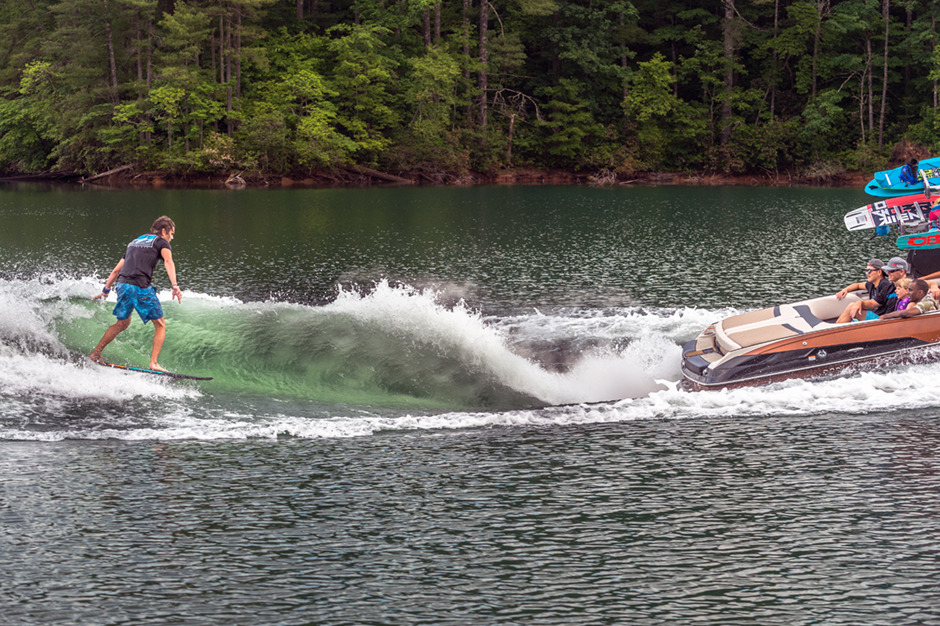

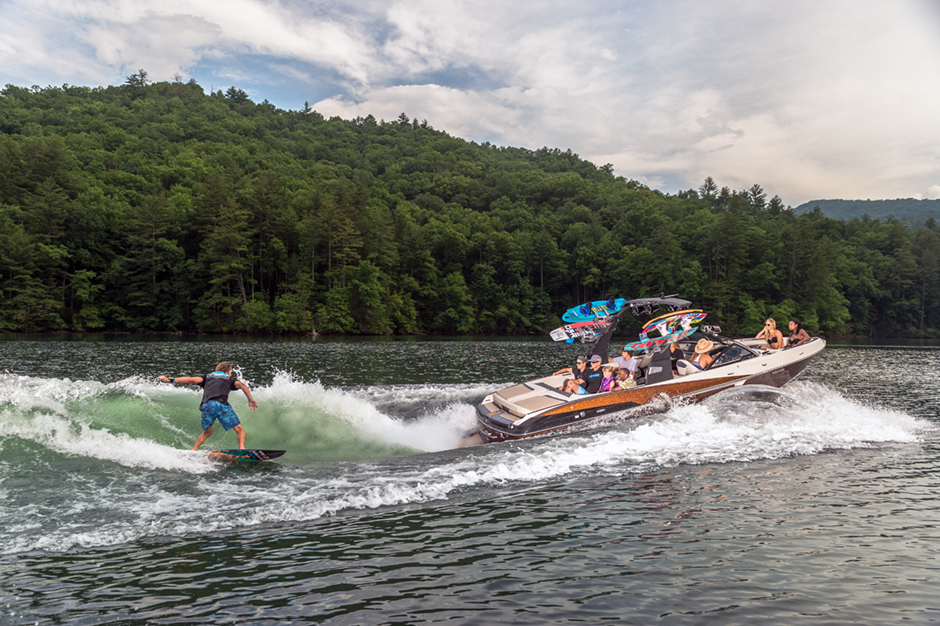

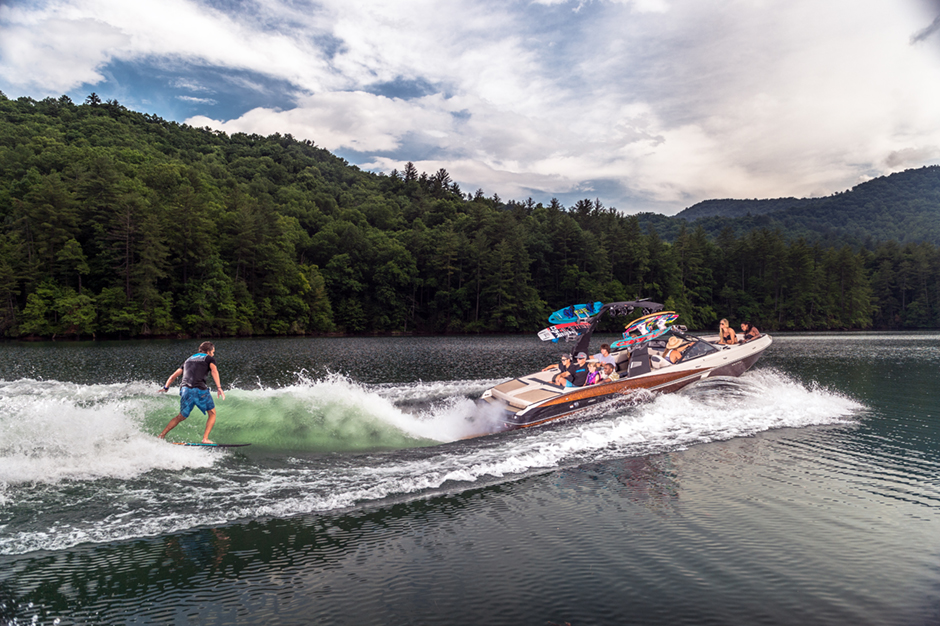

Want to surf instead? Malibu’s patented Surf Gate, a set of twin vertical tabs that lie adjacent to the swim platform, shape the wake for a clean, powerful and eminently surfable wave. It doesn’t matter if you surf regular or goofy foot. When the port or starboard gate is extended outward, it disrupts the convergent point of water coming off the hull sides, further boosting and cleaning up the wake’s shape on a rider’s preferred side. Thanks to the fast-acting gates, switching the focus from one side of the wake to the other takes mere seconds and enables skilled surfers to work both the left and right sides without pausing to shift ballast.

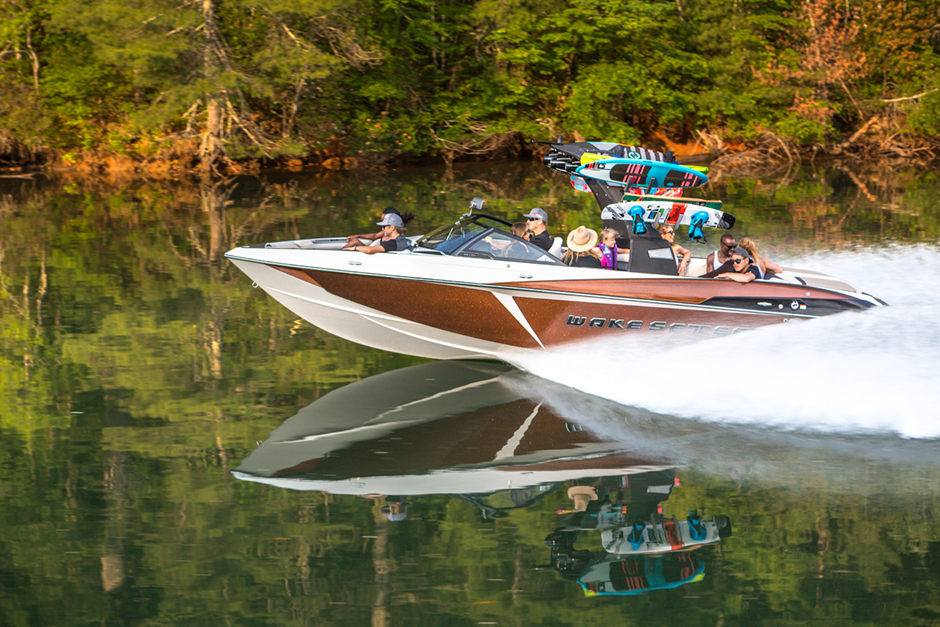

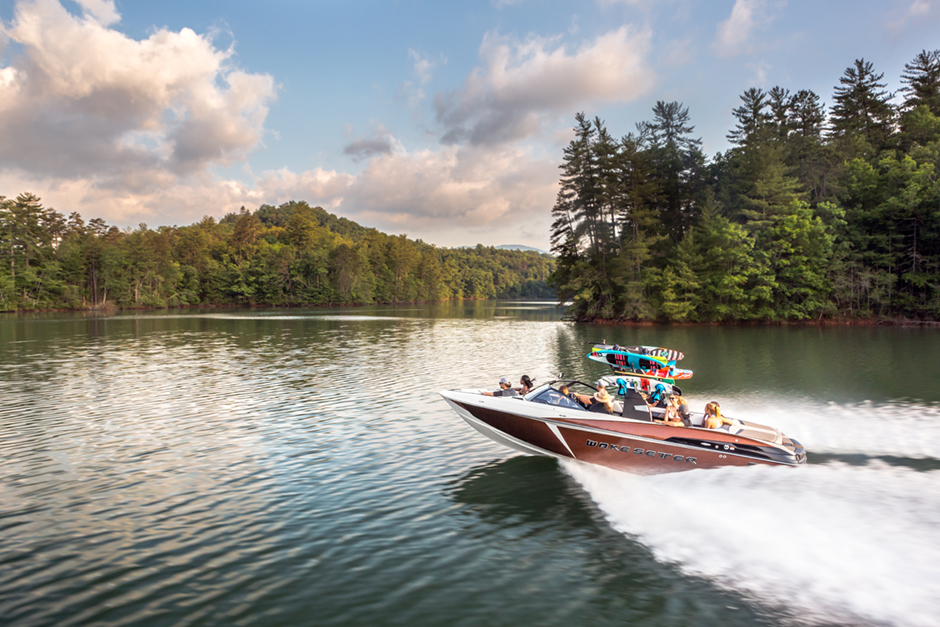

Creature comforts? The Wakesetter 25 LSV has all that, too. Wraparound cockpit seating can hold up to 19 people, enough to give any rider a large audience. Flip over the aft bench for a front-row view of the action in the boat’s wake. Our test boat featured an Indmar 6.2L Monsoon 450 HO for propulsion. With the ballast tanks drained, it climbed onto plane in 4.6 seconds, powered to 30 mph in 7.4 seconds, and hit a top speed of just over 37 mph.
High Points
* Malibu’s Command Center, a pair of touchscreen helm displays, provides control of the ballast, Power Wedge, Surf Gate, speed and more.
* Optional analog control dial offers physical control of the above features while allowing focus to remain on driving.
* Power Wedge II also keeps the bow down for quick planing and great forward vision.
Boatingmag.com
WaterSki Mag
The Malibu Wakesetter 25 LSV is unquestionably the line’s new flagship. It’s 25 feet of roomy, luxurious traditional bow that’s fresh for 2016 and puts an accent on wake performance. This is for anyone demanding la crème de la crème in wake, surf and tech.
The 25 LSV has a moldable wakeboard and wakesurf wake straight from the dealer, and it’s all thanks to the Surf Gate, Power Wedge and Surf Band. The Power Wedge not only beefs up your wake and directs the boat’s running attitude, but it also lifts the back of the boat out of the water for faster hole shots and better fuel economy. Surf Gate continues to impress for 2016 with advanced features that let you surf the boat evenly weighted, and the new Surf Band lets you control the wave’s characteristics, as well as when it transfers from side to side. The G4 is tower technology incarnate. A honeycomb interior construction creates the pinnacle of rigidity, the locking feature is simple, and the wiring is integrated into the structure to maintain a seamless exterior. The dash got some tweaks for 2016 that made it even more refined. The menus were simplified in the 12-inch center touchscreen as well as the 7-inch auxiliary screen, and the multifunction rotary switch is just as handy as last year to nudge settings while running down the lake.
Water Ski Magazine
